Introduction to simple linear regression

What is regression?

A way of predicting the value of one variable from another.

    • it is a hypothetical model of the relationship between two variables.
    • the model used is linear.
    • we describe the relationship using the equation of a straight line.

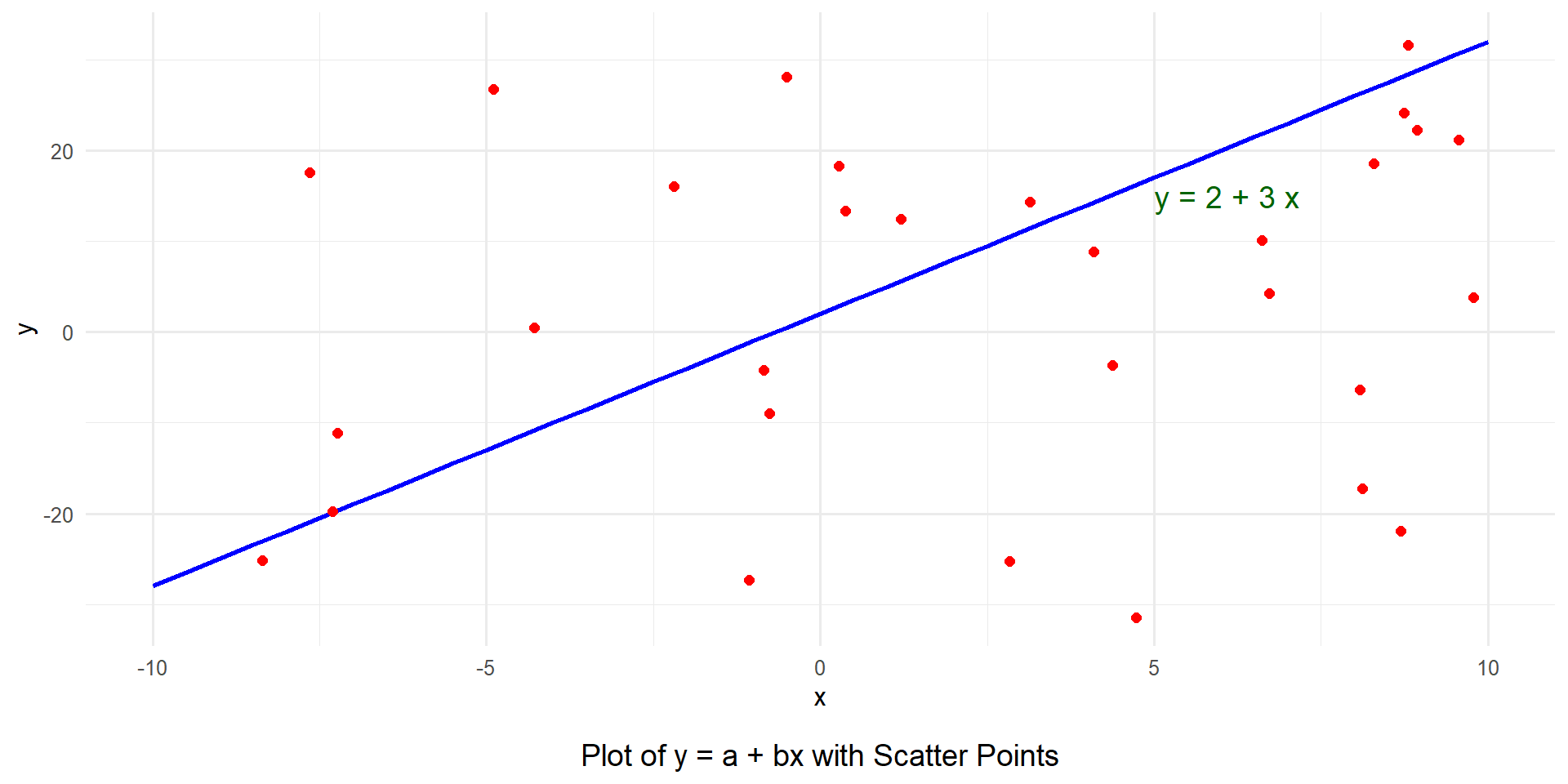

Simple linear regression

Simple linear regression (a quick review)


Regression equation

\[ Y_i = \beta_0 + \beta_iX_i + \epsilon_i \]

    • \(\beta_i\)
      • regression coefficient for the predictor
      • gradient or slope of the regression line
      • direction/strength of the relationship
    • \(\beta_0\)
      • intercept
      • point at which the regression line crosses the Y-axis

Simple linear regression (a quick review)

Simple linear regression

Example in R

A distributor of frozen desert pies wants to evaluate the effect of price to the demand of pie. Data are collected for 15 weeks.

head(df)
# A tibble: 6 × 4
   Week Pie_Sales Price Advertising
  <int>     <dbl> <dbl>       <dbl>
1     1       350   5.5         3.3
2     2       460   7.5         3.3
3     3       350   8           3
4     4       430   8           4.5
5     5       350   6.8         3
6     6       380   7.5         4

Simple linear regression

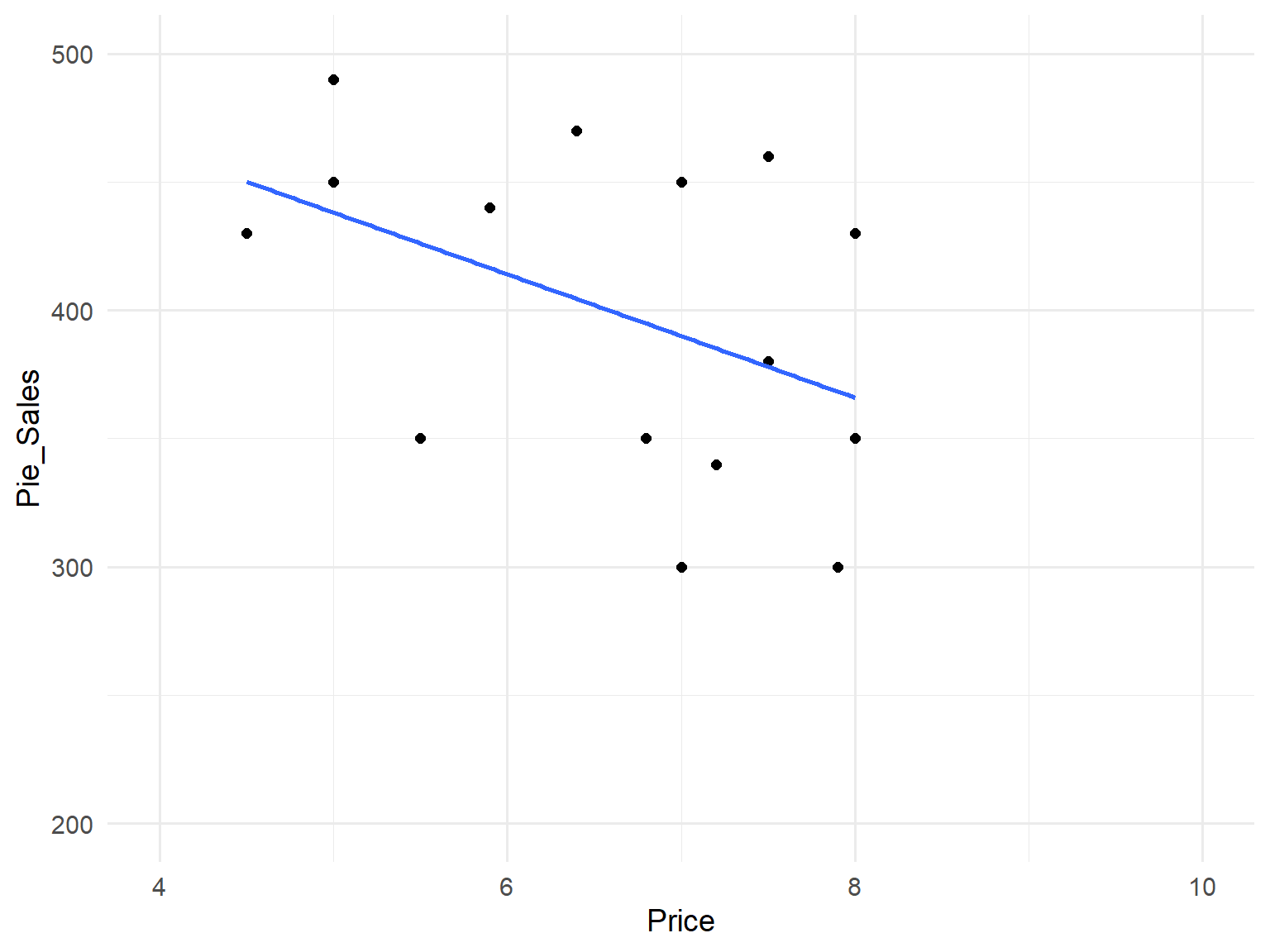

Step 1: check data using a scatter plot

df |> ggplot(aes(Price, Pie_Sales)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE) +
  scale_x_continuous(limits = c(4, 10)) +
  scale_y_continuous(limits = c(200, 500)) +
  theme_minimal(base_size = 14)

Simple linear regression

Step 2: Estimate the model

## estimating linear regression
model <- lm(Pie_Sales ~ Price, data = df)

## printing model summary
summary(model)

Call:
lm(formula = Pie_Sales ~ Price, data = df)

Residuals:
    Min      1Q  Median      3Q     Max
-90.040 -45.040   1.977  55.926  81.977

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   558.28      90.44   6.173 3.36e-05 ***
Price         -24.03      13.48  -1.783   0.0979 .
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 59.09 on 13 degrees of freedom
Multiple R-squared:  0.1965,    Adjusted R-squared:  0.1347
F-statistic: 3.179 on 1 and 13 DF,  p-value: 0.09794

Step 3: Interpret results

  • y-intercept (a): 558.28

    • estimated average value of \(y\) when all \(x_i = 0\)

  • slope (b): -24.03

    • estimates the average value of y changes by \(b_i\) units for each 1 unit increase in \(x_i\) holding other variables constant.

    • example: a 1 unit increase in price decreases the pie sales by 24.03 pies per week.

Multiple linear regression

    • a linear regression with one or more independent variable (explanatory variable), and one dependent variable (response variable).

    • multiple regression model

\[ y = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + ... + b_k x_k \]

Multiple linear regression

Example in R

A distributor of frozen desert pies wants to evaluate the factors affecting the demand of pie. Data are collected for 15 weeks.

Multiple linear regression

Step 1: import dataset

## import synthetic data
df <- tibble(
  Week = 1:15,
  Pie_Sales = c(350, 460, 350, 430, 350, 380, 430, 470, 450, 490, 340, 300, 440, 450, 300),
  Price = c(5.50, 7.50, 8.00, 8.00, 6.80, 7.50, 4.50, 6.40, 7.00, 5.00, 7.20, 7.90, 5.90, 5.00, 7.00),
  Advertising = c(3.3, 3.3, 3.0, 4.5, 3.0, 4.0, 3.0, 3.7, 3.5, 4.0, 3.5, 3.2, 4.0, 3.5, 2.7)
)

## print dataset
head(df)
# A tibble: 6 × 4
   Week Pie_Sales Price Advertising
  <int>     <dbl> <dbl>       <dbl>
1     1       350   5.5         3.3
2     2       460   7.5         3.3
3     3       350   8           3
4     4       430   8           4.5
5     5       350   6.8         3
6     6       380   7.5         4

Step 2: Create a scatter plot

Multiple linear regression

Step 3: Estimate the model

## estimating linear regression
model <- lm(Pie_Sales ~ Price + Advertising, data = df)

## printing model summary
summary(model)

Call:
lm(formula = Pie_Sales ~ Price + Advertising, data = df)

Residuals:
    Min      1Q  Median      3Q     Max
-63.795 -33.796  -9.088  17.175  96.155

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   306.53     114.25   2.683   0.0199 *
Price         -24.98      10.83  -2.306   0.0398 *
Advertising    74.13      25.97   2.855   0.0145 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 47.46 on 12 degrees of freedom
Multiple R-squared:  0.5215,    Adjusted R-squared:  0.4417
F-statistic: 6.539 on 2 and 12 DF,  p-value: 0.01201

Step 4: Interpret results

  • \(\beta_1\) (Price): -24.98

    • pie sales will decrease, on average, by 24.98 pies per week for each 1 unit increase in selling price, net of the effects of changes due to advertising.

  • \(\beta_2\) (Advertising): 74.13

    • sales will increase, on average, by 74.13 pies per week for each $1 increase in advertising, net of the effects of changes due to price.

Multiple linear regression


# table summary
library(jtools)
summ(model)
Observations 15
Dependent variable Pie_Sales
Type OLS linear regression
F(2,12) 6.54
R² 0.52
Adj. R² 0.44
Est. S.E. t val. p
(Intercept) 306.53 114.25 2.68 0.02
Price -24.98 10.83 -2.31 0.04
Advertising 74.13 25.97 2.85 0.01
Standard errors: OLS

Multiple linear regression


# plot
library(jtools)
effect_plot(model,
            pred = Price,
            plot.points = TRUE,
            jitter = 0.5,
            interval = TRUE)

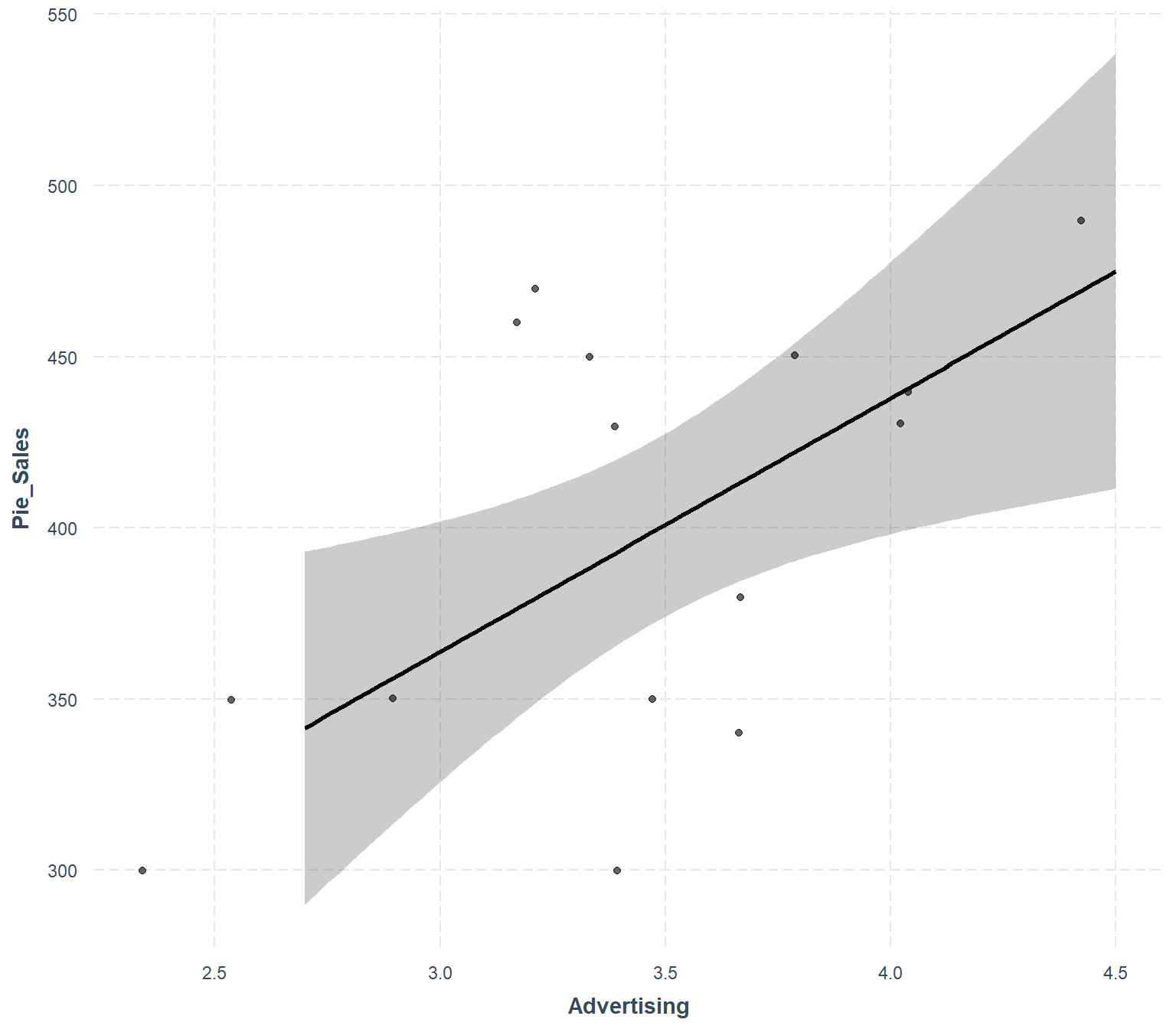

Multiple linear regression


# plot
library(jtools)
effect_plot(model,
            pred = Advertising,
            plot.points = TRUE,
            jitter = 0.5,
            interval = TRUE)

Check-up quiz

What is the primary goal of linear regression analysis?

  • To determine the strength of the relationship between two categorical variables.

  • To predict the value of a dependent variable based on one or more independent variables

  • To compare the means of two or more groups.

  • To analyze the frequency of occurrences within categories.

In simple linear regression, what does the slope of the regression line represent?

  • The average value of the dependent variable.

  • The change in the dependent variable for a one-unit increase in the independent variable

  • The correlation between the two variables.

  • The predicted value of the dependent variable when the independent variable is zero.

How does multiple linear regression differ from simple linear regression?

  • Multiple linear regression uses only one independent variable.

  • Multiple linear regression uses two or more independent variables

  • Multiple linear regression analyzes categorical variables.

  • Multiple linear regression does not involve a dependent variable.

What is the coefficient of determination (R-squared) in the context of regression analysis?

  • A measure of the strength of the linear relationship between the variables

  • The probability of making a correct prediction.

  • The difference between the observed and predicted values.

  • he slope of the regression line.

How good is the model?


Take note!

    • The regression line is only a model based on a data.
    • This model might not reflect the reality.
      • We need some way of testing how well the model fits the observed data.
      • how?

Sum of Squares

Total sum of squares

    • \(SS_T = \Sigma(y_i - \bar{y})^2\)
      • uses the differences between the observed data and the mean value of Y

Sum of Squares

Residuals sum of squares

    • \(SS_R = \Sigma(y_i - \hat{y_i})^2\)
      • uses the differences between the observed data and regression line

Multiple coefficient of determination (R-squared)

R-squared (\(R^2\))

    • reports the proportion of total variation of in \(y\) explained by all \(x\) variables taken together

\[ R^2 = \frac{\text{SSR}}{SST} = \frac{\text{Sum of squares regression}}{\text{Total sum of squares}} \]

Multiple coefficient of determination (R-squared)

  • Adjusted R-squared (\(R^2\))

    • \(R^2\) never decreases when new \(x\) variable is added to the model.
    • This can be disadvantage when comparing models


What is the effect of adding a new variable?

    • We lose a degree of freedom when a new \(x\) variable is added.
    • Did the new \(x\) variable add enough explanatory power to offset the loss of one degree of freedom?

Multiple coefficient of determination (R-squared)

Adjusted R-squared (\(R^2\))

\[ R^2_{adj} = 1 - (1 - R^2)(\frac{n-1}{n-k-1}) \]

  • where
    • \(n\) = sample size
    • \(k\) = number of independent variables

    • shows the proportion of variation in \(y\) explained by all \(x\) variables adjusted for the number of \(x\) variables used.

    • where excessive use of unimportant independent variables

    • smaller then \(R^2\)

    • useful in comparing among models

Example in R

Calculate the \(R^2\) and adjusted \(R^2\)

\[ R^2 = \frac{\text{SSR}}{SST} = \frac{\Sigma(y_i - \hat{y_i})^2}{\Sigma(y_i - \bar{y})^2} \]

## Estimating linear regression
model <- lm(Pie_Sales ~ Price + Advertising, data = df)

## Extract model predictions
y_pred <- predict(model)
y_actual <- df$Pie_Sales

## Compute SS_tot (Total Sum of Squares)
y_mean <- mean(y_actual)
SS_tot <- sum((y_actual - y_mean)^2)

## Compute SS_res (Residual Sum of Squares)
SS_res <- sum((y_actual - y_pred)^2)

## Compute R-squared manually
r_squared_manual <- 1 - (SS_res / SS_tot)
Manual R-squared: 0.5214779

\[ R^2_{adj} = 1 - (1 - R^2)(\frac{n-1}{n-k-1}) \]

## Compute Adjusted R-squared manually
n <- nrow(df)  # Number of observations
k <- length(coef(model)) - 1  # Number of predictors
adj_r_squared_manual <- 1 - ((1 - r_squared_manual) * (n - 1) / (n - k - 1))
Manual Adjusted R-squared: 0.4417243

Diagnostic tests

Linearity assumption

    • linear regression model relates the outcome to the predictors via a linear fashion.

    • departure from linearity can be checked by using a scatter plot and a line overlaid to the plots

    • if linearity is not satisfied, transformation may be needed

Linearity assumption

insert plot

Normality of errors

    • confidence intervals for regression and related hypothesis tests are based on the assumption that the coeffcient estimates have normal distribution.

Homoscedasticity of error variance

Independence of errors

Non-multicollinearity
